描述

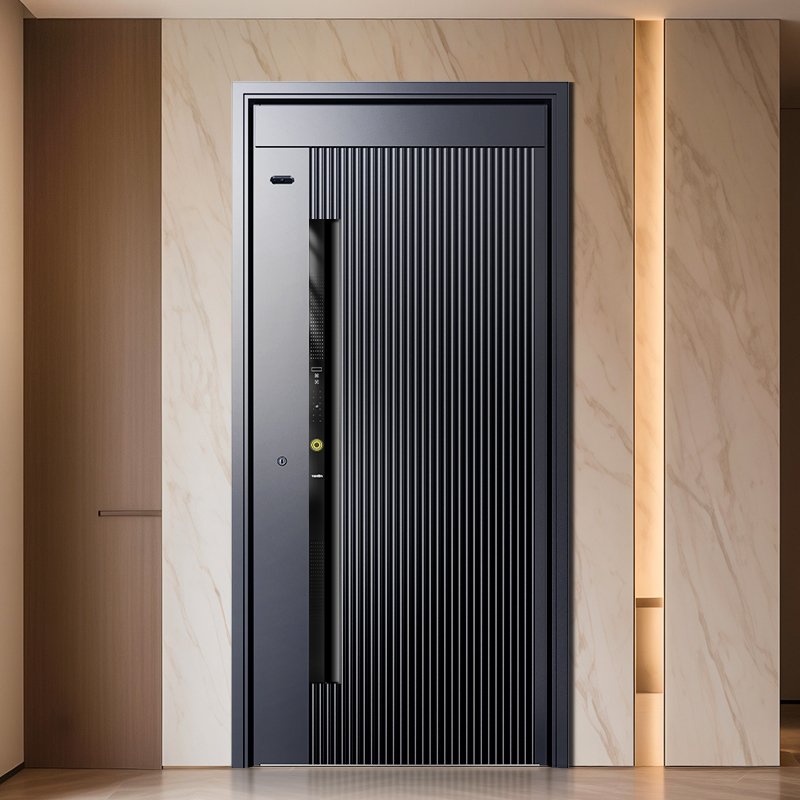

The Tenon MS Smart Door System features an integrated embedded design that seamlessly combines an intelligent lock, tempered glass panel, and concealed hidden pull handle. Its appearance is clean and unified, offering a premium touch that embodies modern home aesthetics.
A soft ambient light activates upon sensing approach, infusing every homecoming with a sense of ceremony. Equipped with a patented fully automatic electronic lock mechanism (Patent No.: CN201910730516.4), it incorporates a Grade C security lock cylinder and an electromechanically integrated “Big Overlord” lock body. This system provides robust protection against prying and drilling, is energy-efficient, durable, and ensures the bolt never jams, setting a new benchmark for smart door lock security.
Specification
| Model | Tenon MS Smart System |
|---|---|
| Material | Aluminium alloy |
| Unlocking way | Fingerprint, Password, IC card, Face Recognition, Palm vein, Mechanical key, APP |
| Fingerprint module | Semi-conductor fingerprint module |
| Card type | Mifare M1 |
| Fingerprint/Password/IC card capacity | 99pcs |
| Face Recognition +Palm vein capacity | 50pcs |
| Power supply | 7.4V Lithium battery |
| Emergency power | 5V Type-c |
| Low voltage alarm | ＜6.8V |
| Working temperature | -25 °C ~70 °C |
| Relative humidity | 20~90%RH |
| Mortise | D7068ML |
| Screen size | 5.5 inches |
| App | Pink Lemon |
| Applicable Door Types | Aluminum doors, Stainless steel doors |
| System Architecture | Tenon Unbounded Max Intelligent System |
| Lock Body Type | Patented electromechanical integrated automatic lock body |
| Biometric Recognition | 3D facial recognition + palm vein recognition + semiconductor fingerprint recognition |
| Monitoring System | AI intelligent camera + radar sensing |

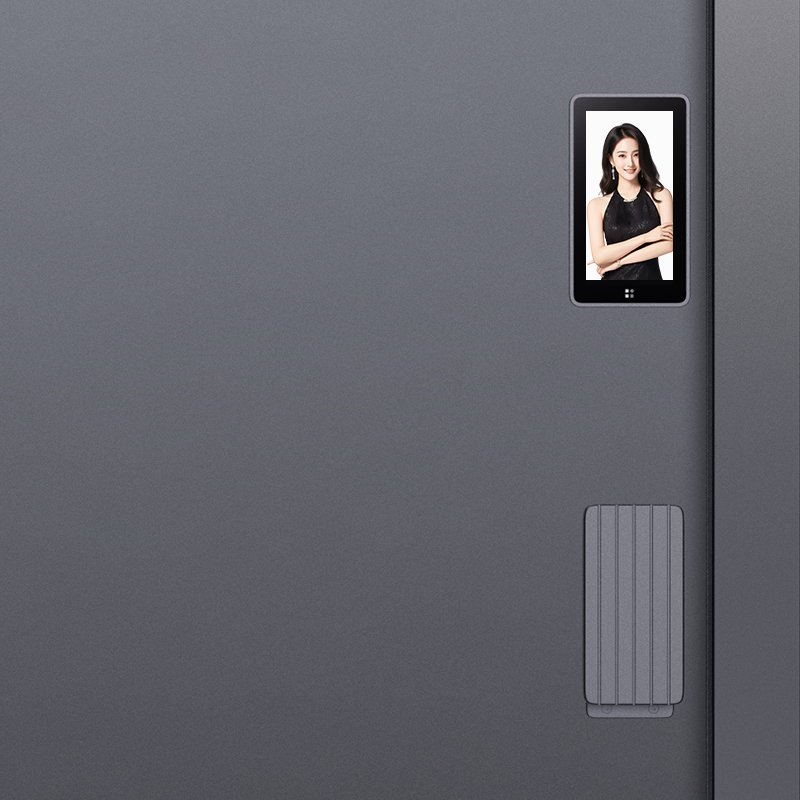

| Display and Interaction | Indoor embedded high-definition smart screen |
| Connectivity Protocol | Mobile app remote control / Whole-house smart control linkage |
| Application | Steel door, Aluminum door |

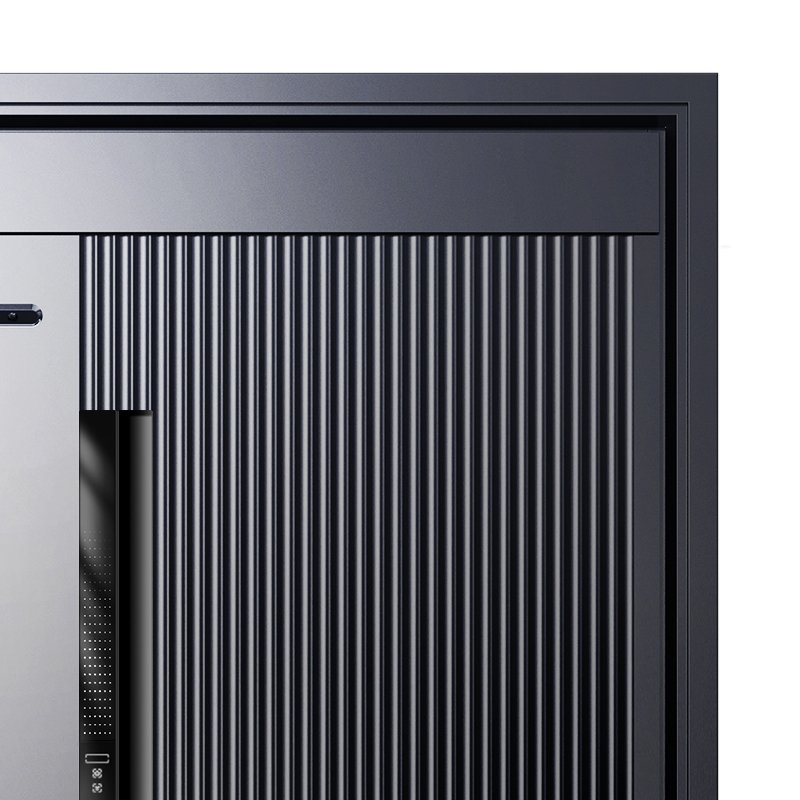

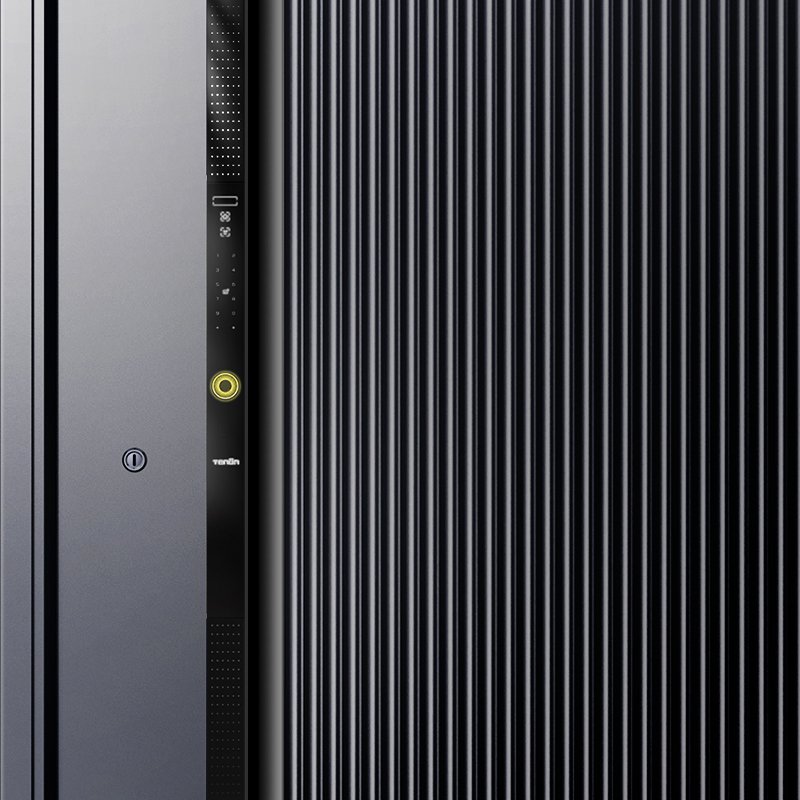

Fully integrated, flush-mounted design with no visible handle—sleek, seamless, and sophisticated.
Soft, intelligent lighting activates as you approach, turning every homecoming into a moment worth savoring.
Patented fully automatic electronic latch (Patent No.: CN201910730516.4)—locks instantly when the door closes. Never worry about forgetting to lock up again.
Burglary-resistant, drill-proof, energy-efficient, and jam-free—security built into every detail.
